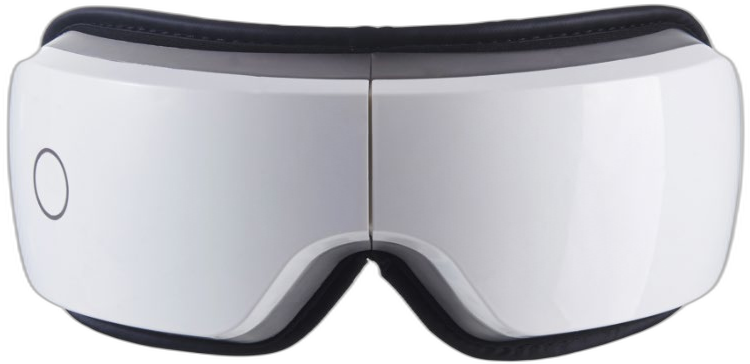

KS-3706 eye massager, front view

2 images

Specification

KS-3706 Eye Massager

A KS-3700-platform unit on Micro USB rather than Type-C. Where a buyer already stocks Micro USB cabling, or is replacing an existing line without changing…

KS-3706
Modes
5
Battery
1200mAh
Net weight
0.35kg
Noise
≤55dB
Per carton
20 pcs

Highlights

  • Micro USB charging
  • Four-step air pressure, three-step heat
  • Five massage modes
  • 0.35kg
The A-series worn during a 15-minute programme.
The A-series worn during a 15-minute programme.

Massage modes

Mode 1Air pressure + heat + music
Mode 2Air pressure + heat
Mode 3Air pressure
Mode 4Heat
Mode 5Heat + music
KS-3706 eye massager control layout with labelled buttons
Control layout

Controls

PowerHold 2s to switch on or off. Press to cycle the five modes.
Air pressurePress to cycle soft, moderate, strong, off. Hold 2s to activate Bluetooth pairing.
MusicPress to cycle volume: low, medium, maximum, mute. Hold 2s for the next track.
HeatPress to cycle 38–40°C, 42–45°C, off. Hold 2s to stop playback.

Specifications

Rated voltage5V
Rated power5W
Charging interfaceMicro USB
Maximum charging current5V 1A (supports A-C and C-C)
StandardsGB 4706.1-2005, GB 4706.10-2008
Noise≤55dB at 30cm
Battery capacity1200mAh
Charging time2-3 hours
Dimensions210 × 95 × 40mm
Net weight0.35kg ±0.1kg
Carton quantity20 pcs
Gross weight per carton15.9kg

Materials

HousingEngineering ABS, PC
AirbagTPU
Elastic bandTetoron (polyester)

Compare this model against the full range on the specification table.
